ASUS PRIME B840-PLUS Wifi AMD AM5 ATX Motherboard

Click to enlarge

ASUS PRIME B840-PLUS Wifi AMD AM5 ATX Motherboard

KSh 28,000.00

ASUS PRIME B840-PLUS Wifi AMD AM5 ATX Motherboard
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Enhanced Power Solution: 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
Ultrafast Connectivity: Wi-Fi 6E, PCIe 4.0 x16 slot, PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C ports, and front USB 5Gbps Type-C support
Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

WhatsApp us

Category: Motherboard Tag: AM5 MOTHERBOARD

Description

ASUS PRIME B840-PLUS Wifi AMD AM5 ATX Motherboard

B840-PLUS WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

* CEC Tier II ready

Advanced AI PC ready logo AMD RYZEN Logo AMD X870E Chipsatz-Logo

8+2+1

phase digital power design

AEMP

for enhanced DDR5 performance

2.5 Gb Ethernet

for faster data transfers

Wi-Fi 6E

for stable Wi-Fi connection and lower latency

USB 10 Gbps Type-C®

for rapid data transmission

PCIe® 4.0 slots

for graphics card and storage

EZ PC DIY

for easier build customization

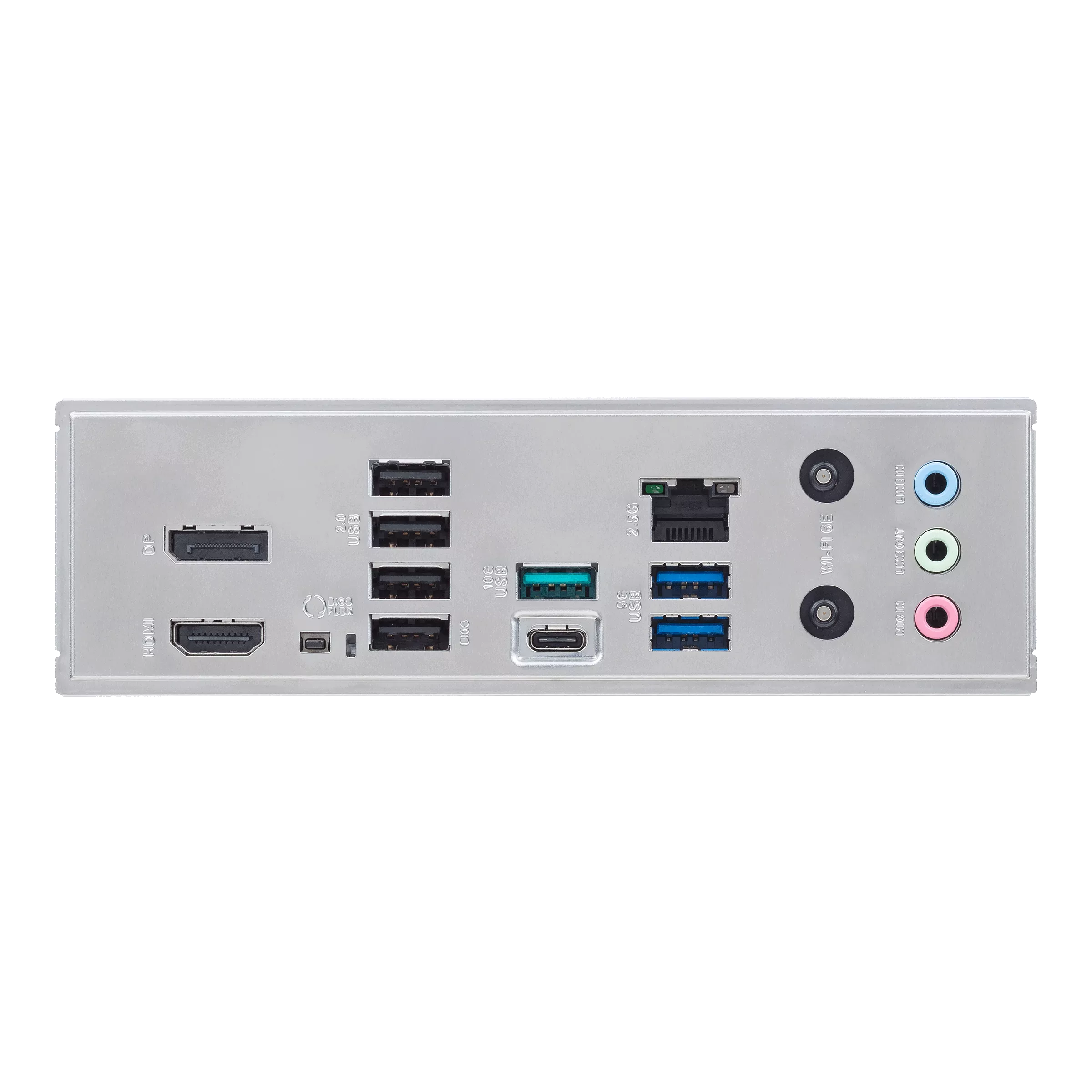

Pre-mounted I/O shield

for safeguarding ports and enhancing aesthetics

Aura Sync

for full RGB lighting control

Performance

AM5 Socket for AMD Ryzen™ Desktop processors
1 x PCIe® 4.0 x16
(supports x16 mode)
SafeSlot Core+
1 x PCIe® 3.0 x16
(max supports x4 mode)
2 x PCIe® 3.0 x16
(support x1 mode)
8+2+1 phase digital power design

4 x DIMM slots DDR5 support Dual channel AEMP
M.2_1 2280
(PCIe® 4.0 x4 mode)
M.2_2 2280
(PCIe® 4.0 x4 mode)
M.2_3 2242/2260/2280
(PCIe® 3.0 x4 mode)

Cooling

VRM heatsinks
Chassis fan header
M.2 heatsink
CPU OPT fan header

CPU fan header
AIO pump fan header
Chipset heatsink
3 x Chassis fan headers

Flexibility

DisplayPort™
1 x USB 10 Gbps Type-A
HDMI™ port
BIOS FlashBack™ button
4 x USB 2.0 Type-A

1 x USB 10 Gbps Type-C®
2.5 Gb Ethernet
2 x USB 5 Gbps Type-A
Wi-Fi 6E
3 x Audio jacks
1 x USB 5Gbps header
(supports 2 additional USB 5Gbps ports)

1 x USB 5Gbps connector
(supports USB Type-C®)
2 x SATA 6 Gbps ports
1 x Thunderbolt™ (USB4®) header
2 x SATA 6 Gbps ports
2 x USB 2.0 headers
(support 4 additional USB 2.0 ports)

Customization

2 x Addressable gen 2 headers
1 x Addressable gen 2 header

Performance

AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.⁷

UI showing that AI Advisor can be interacted using natural language.

AI Advisor

ASUS AI Advisor is an ASUS technical expert that’s always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.⁷

Performance

Digital Power Design

PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

8
Vcore power

2
SOC power<

1
Misc power

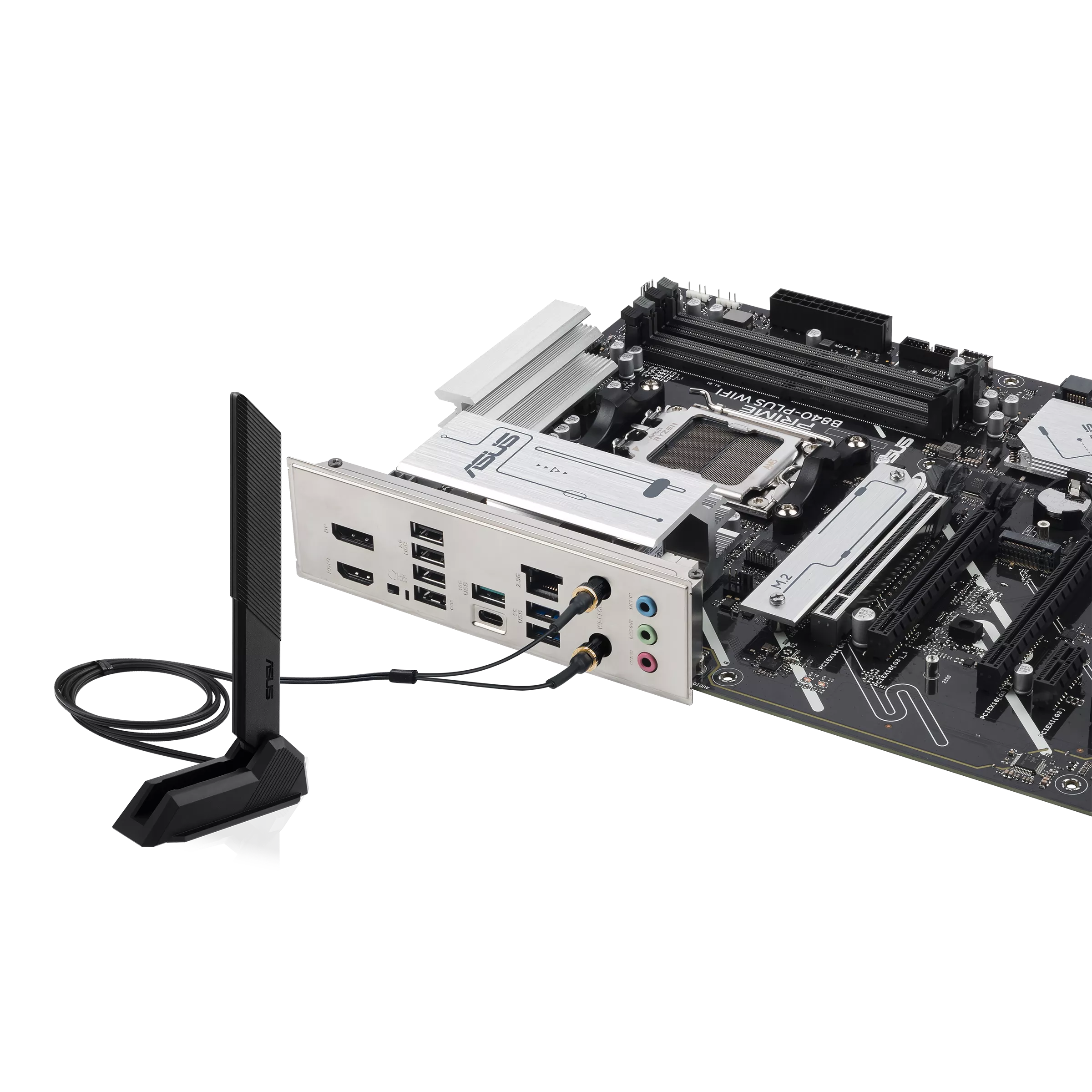

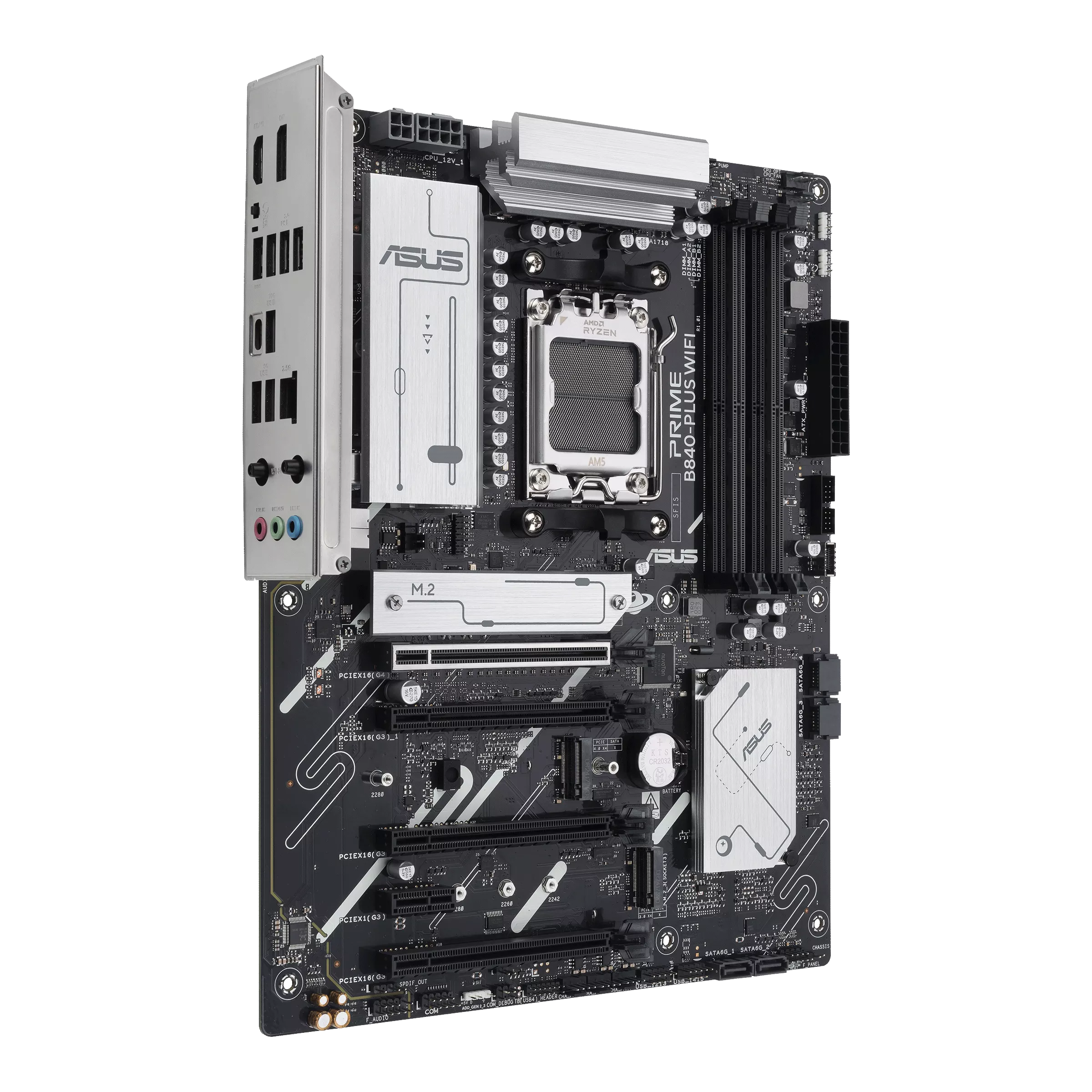

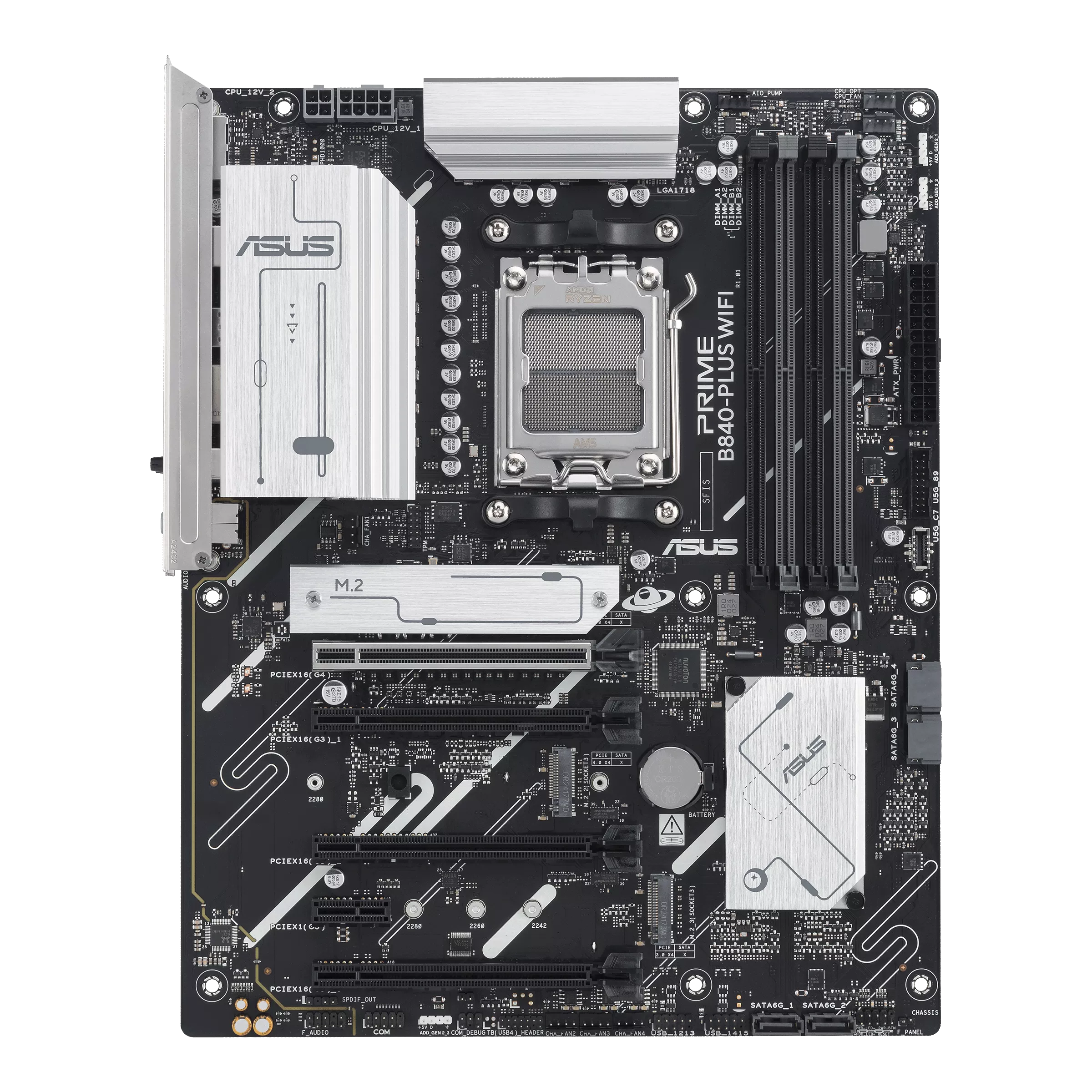

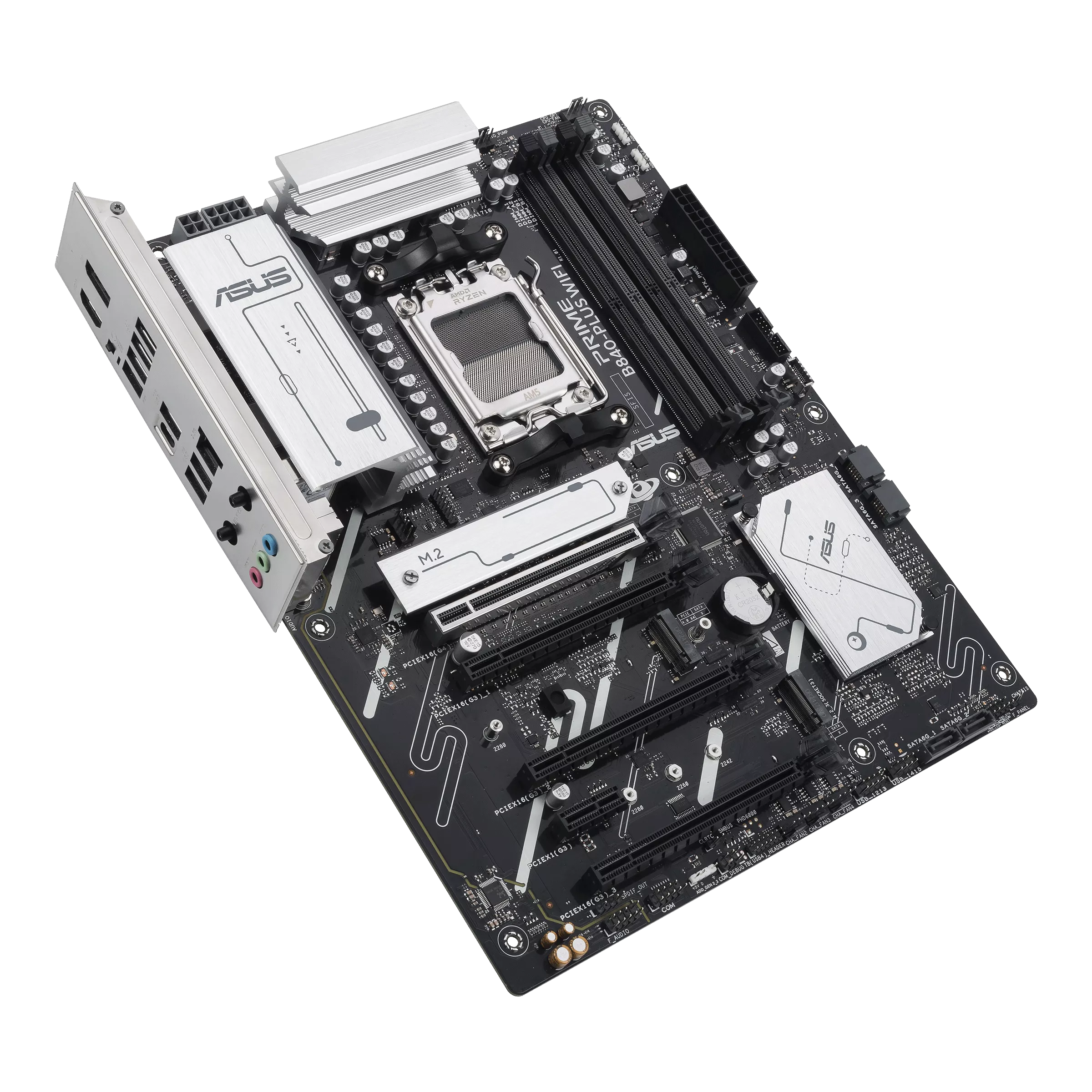

Angled top-down view of PRIME B840-PLUS WIFI motherboard.

Six-layer PCB design

Enhanced stability and overclocking.

Graphic depicting six-layer PCB design.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Power Saving

Optimize power with CPU, lighting, and fan settings.

Power Saving feature logo.

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Digi+ VRM control

Real-time voltage control.

Digi+ VRM logo.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced Memory & Storage Performance

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.¹

For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.².

Three M.2 slots (up to 64 Gbps)

PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, and one that supports PCIe® 3.0. This enables quicker boot-up and app load times with OS or application drives.³

Cooling

Cooler by design

The PRIME B840-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart Cooling precision

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

A Prime motherboard and AIO cooler on a table.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.⁵

Flexibility

Empowering connections

This motherboard offers a versatile range of connectivity, including support for Wi-Fi 6E, PCIe® 4.0 slot and an arsenal of USB ports which includes Type-C® connections.

Wi-Fi 6E

2.5 Gb Ethernet

PCIe® 4.0

PCIe® 4.0 slot

USB 10 Gbps

Wi-Fi 6E

Built-in Wi-Fi 6E⁴ technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, Wi-Fi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

USB 10 Gbps Type-C®

A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 10 Gbps for transmission speeds of up to 10 Gbps.

Additional information

BRAND	ASUS
CONDITION	BRAND NEW
Size	ATX

Brand

ASUS

ASUS is a global technology leader at the forefront of the AI revolution,Computer, laptops, computer parts and components, monitor and hand held gaming consoles Laptops,Motherboards,graphics cards,monitors,gaming consoles and computer accesories
