JONSBO D41 MESH SC White ATX Computer Case with Screen White.
KSh 25,000.00
- Jonsbo D41 Mesh SC Whitee Atx Computer Case Screen
- D41 “Pine cone” series-Mesh Screen Version:
- All-metal Compact ATX chassis with tempered glass-1 Side

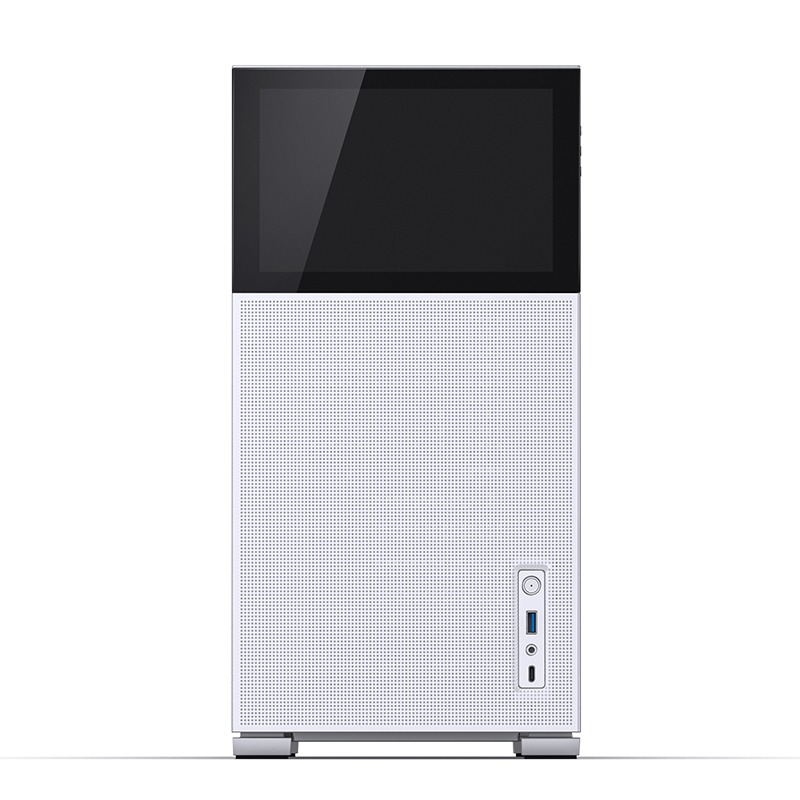

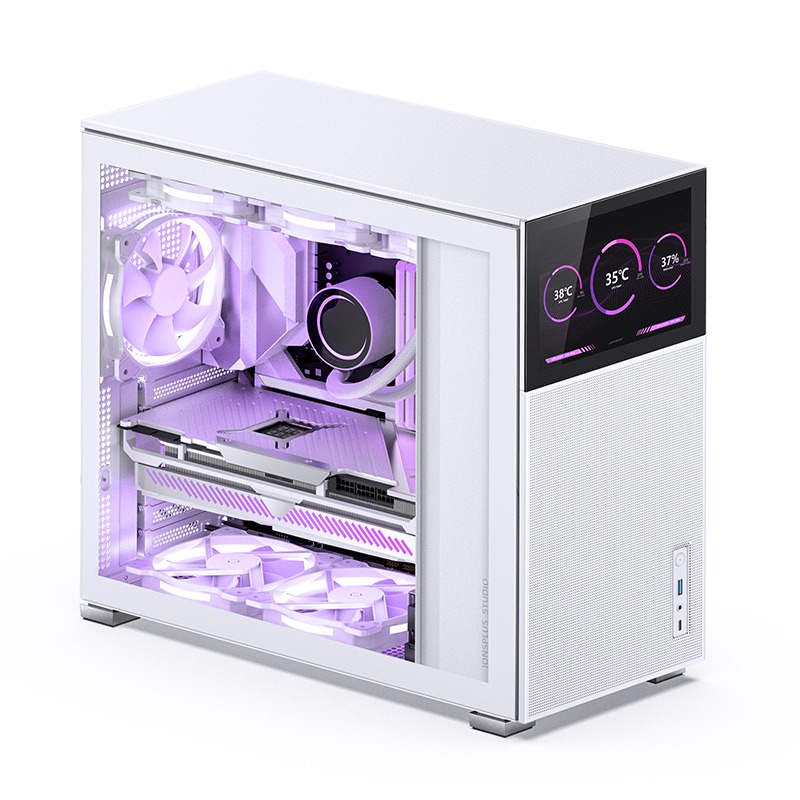

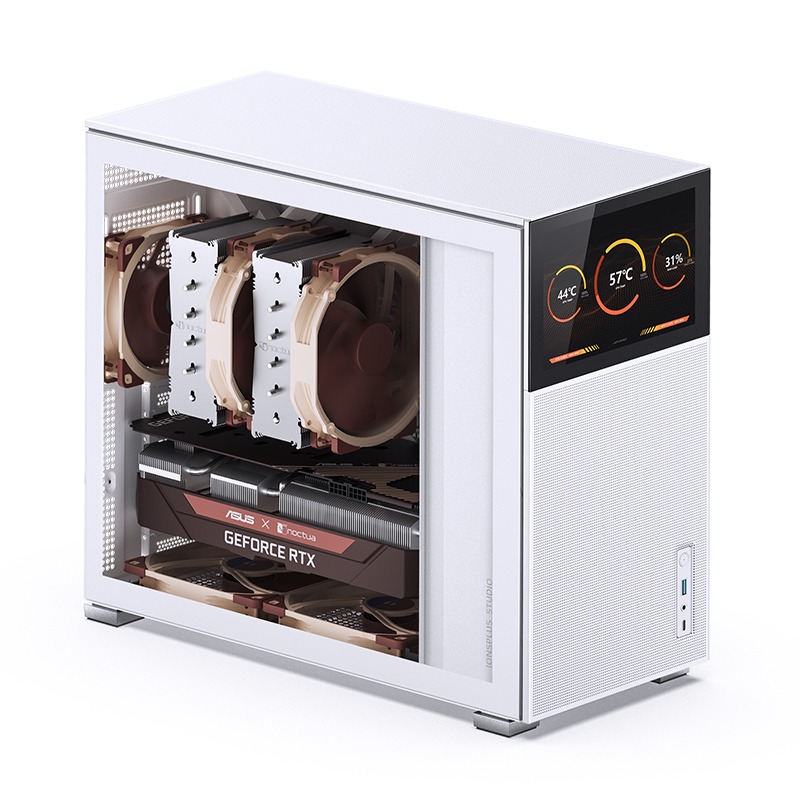

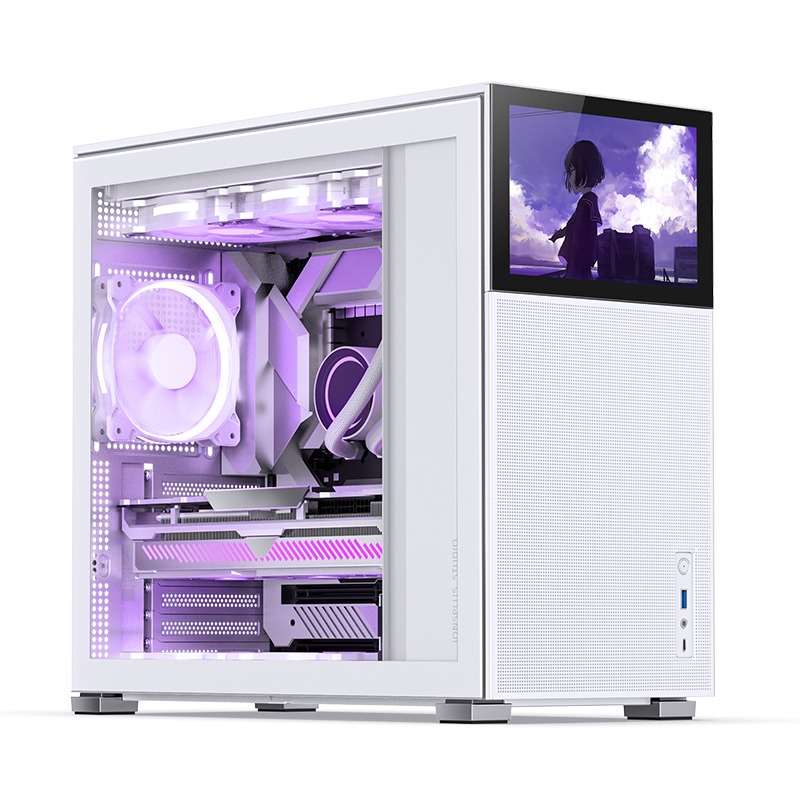

- Enter a new era of sub screen chassis:The 16:10/1280×800 resolution HD LCD display is combined with the chassis,One screen, dual purpose,new visual experience brings to you.
- Note : If the screen has compatibility problems during installation, please contact the customer service for solutions. (AIDA64 software needs to be purchased by users)
- Air cooler:168mm high-order
- Support AIO:360/280 /240(Top)
- Drive Bay:2.5SSD*3+3.5HDD*2
- Expansion Solt:7
- GPU:335-400mm
- MB Support: M-ATX/ATX(30.5×24.5cm)
- PSU: ATX/SFX:100-220mm L max

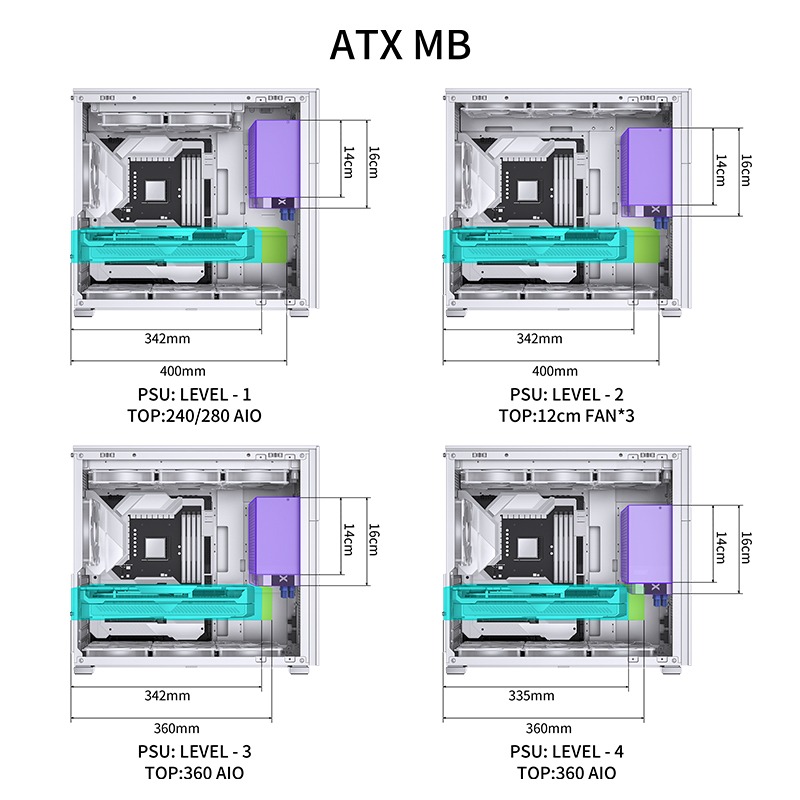

- The 4-level height adjustment of the power supply position is added,Whether it is to set up a personal small workstation or a feverish E-sports PC, D41 can easily select the hardware.
- The power supply bit supports two-way installation

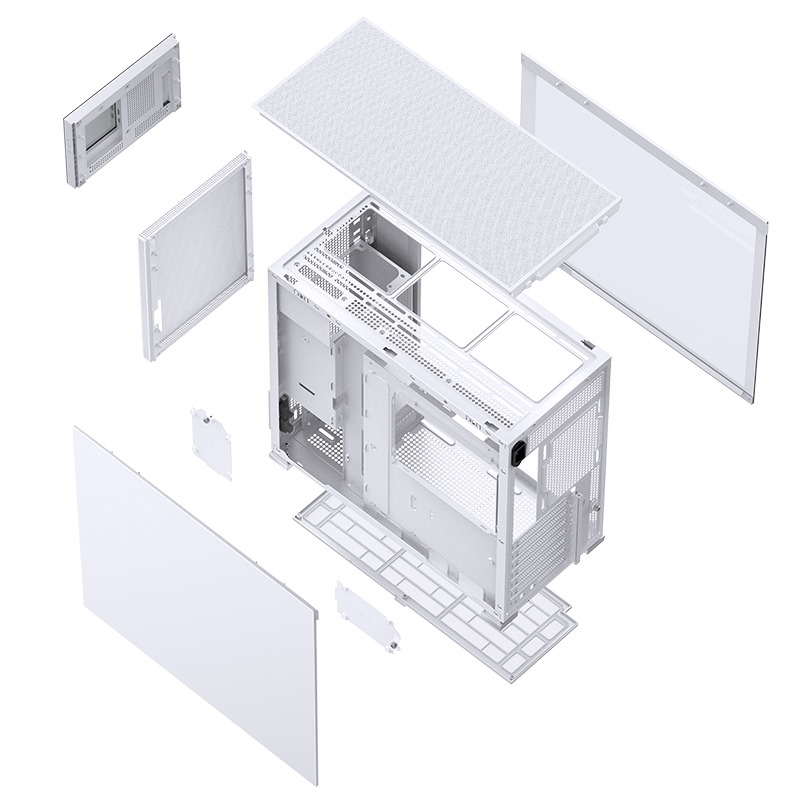

- Multiple tool-free disassembly and installation design
- Color : Black
- Size :H407*W205*D452mm
Out of stock
|
|
|
|
|---|---|---|
|
“The wallpaper software recommends using “Wallpaper Engine”, Hardware monitoring software is recommended to use “AIDA64 Extreme”. (The software needs to be purchased by the user) |
The 1280×800 resolution / 8-inch screen is about 188ppi, which exceeds the display accuracy of a 27-inch 4K monitor of about 162ppi. According to the actual use of 50cm~70cm visual distance, will not produce a sense of pixel particles, all kinds of wallpaper dynamic effects can jump on the screen. |

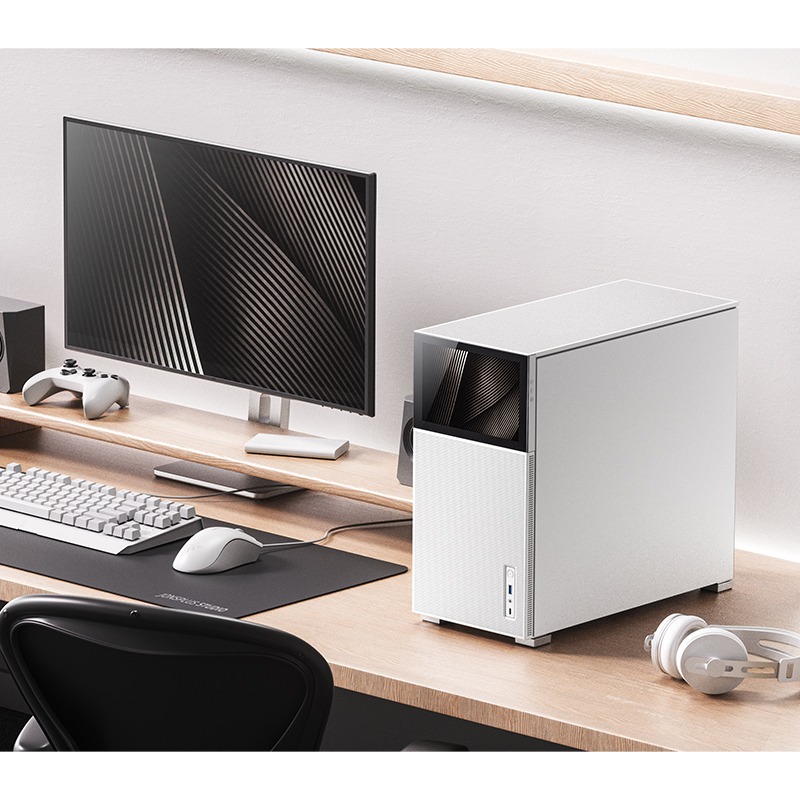

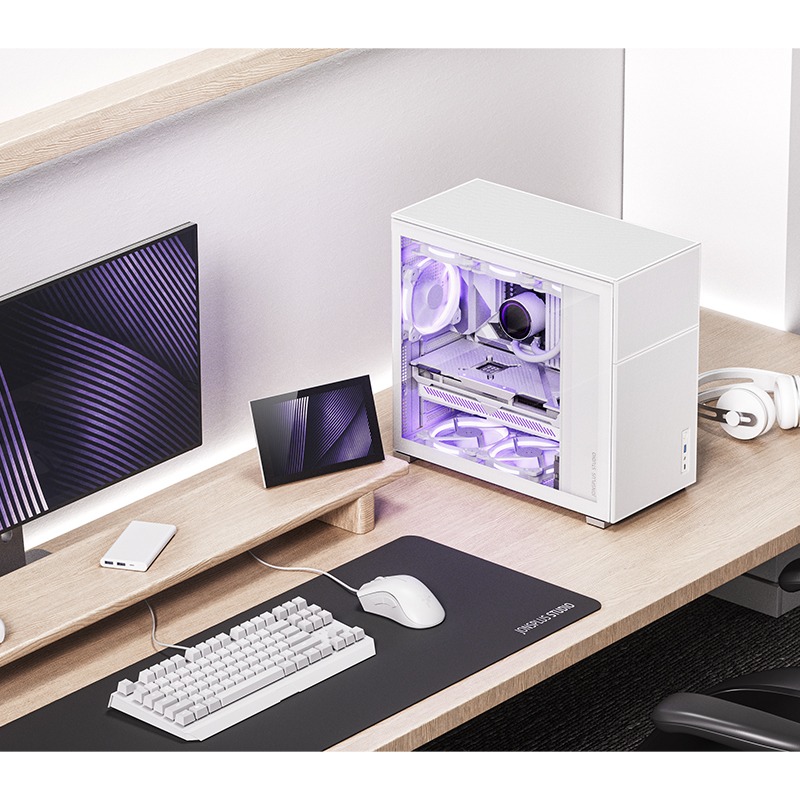

It can be completely disassembled and placed on the desktop Cooperate with the main display in multitasking operating |
Short vertical air duct is constructed for heat dissipation
The heat flow in the space will rise naturally. The D41 follows this characteristic to build the air duct: it supports up to 8 or 12CM fans (or 4 14CM+2 12CM fans).
Thanks to the relatively low box height, the vertical air flow from bottom to top quickly covers the heating hardware, and the internal accumulated heat is discharged from the top mesh. In addition, the installation direction of the power supply can be bidirectional: the power supply air inlet can face the panel direction, without interfering with the internal air duct under the air cooling radiator environment.
Cooling system support specifications
Fan support ：
TOP：120mm*3 or 140mm*2(Optional )
REAR：120mm*1(Optional )
BOTTOM：120mm*3 or 140mm*2(Optional )
FRONT：120mm*1(Optional )
AIO SUPPORT：
TOP：120/240/280/360*1
REAR：120*1
BOTTOM：120/240/360*1
