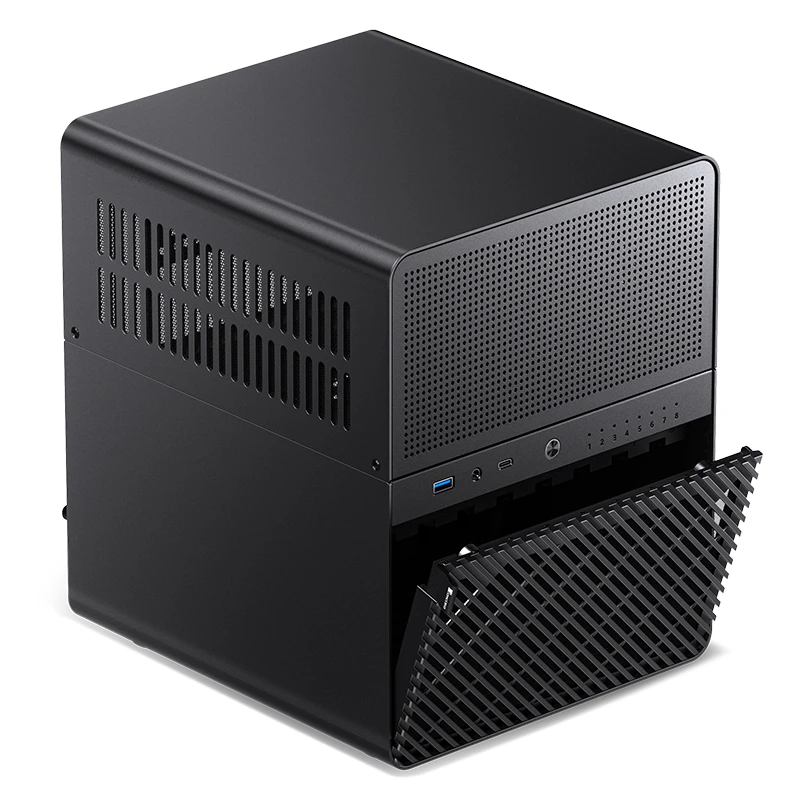

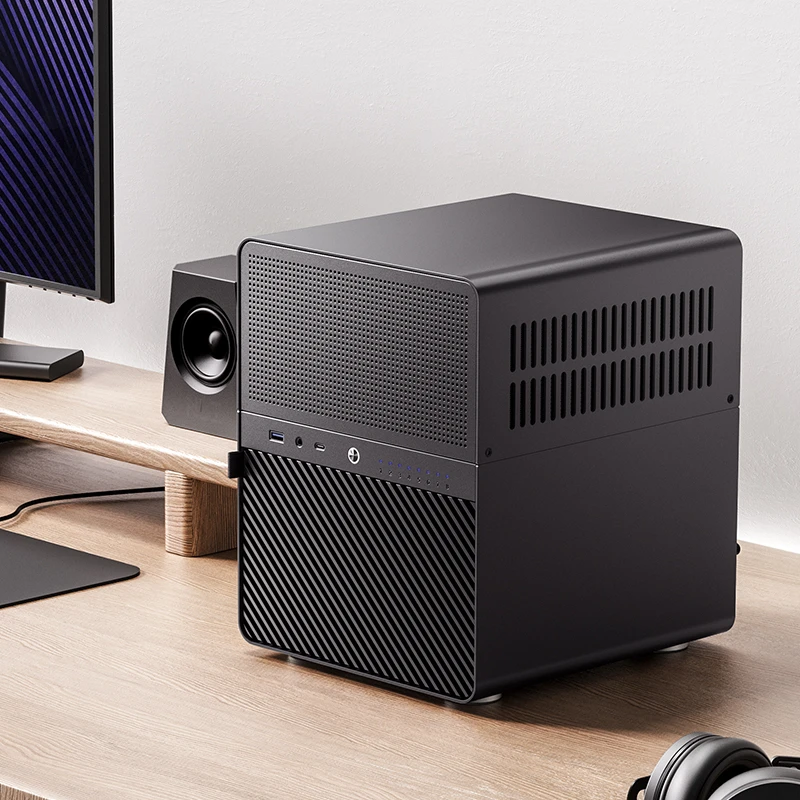

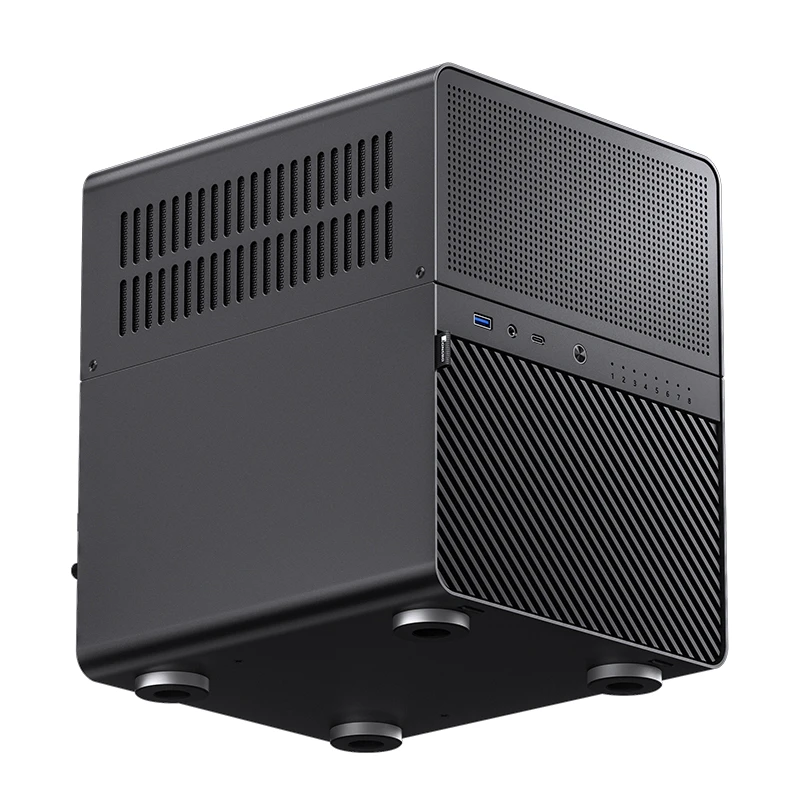

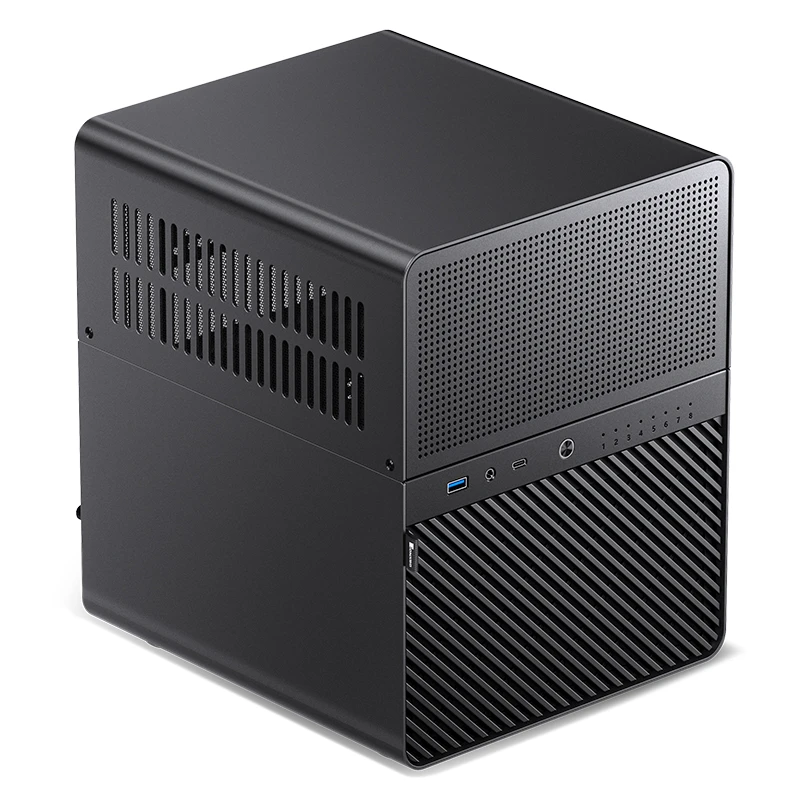

JONSBO N3 Mini-ITX NAS PC Chassis, ITX Computer Case, 8HHD+1-SSDD
KSh 38,000.00
- JONSBO N3 8+1-Disk Bays NAS Mini Aluminum pc case (8×3.5 HDD + 1x 2.5SSD )-Application :Home office / network storage / enterprise storage and other fields,Easier to build your PC + Personal/Home Server,More convenient
- JONSBO N3 Mini-ITX NAS PC Chassis, ITX Computer Case, 8HHD+1-SSDD

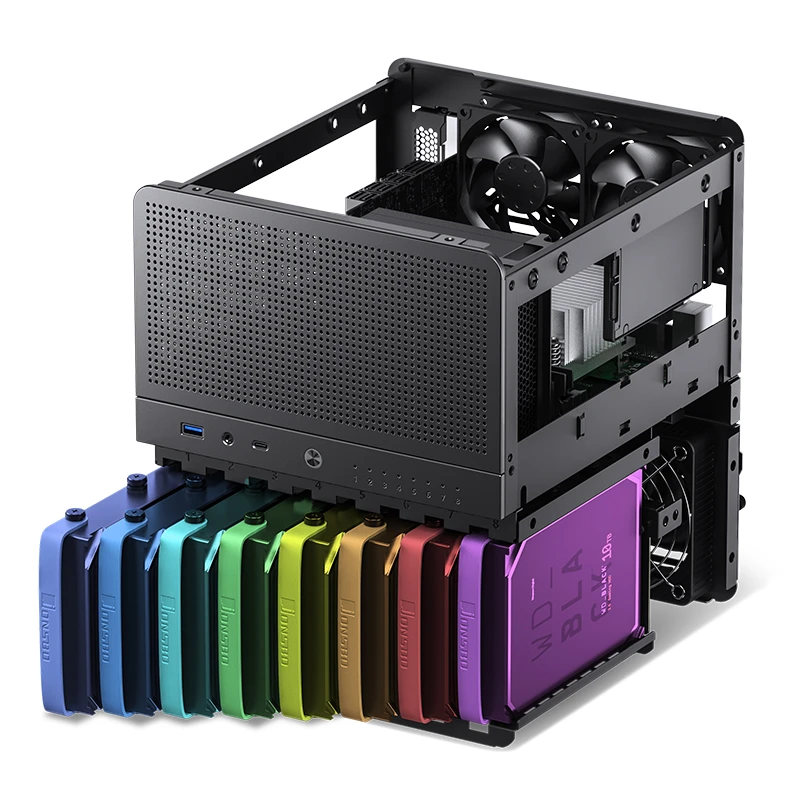

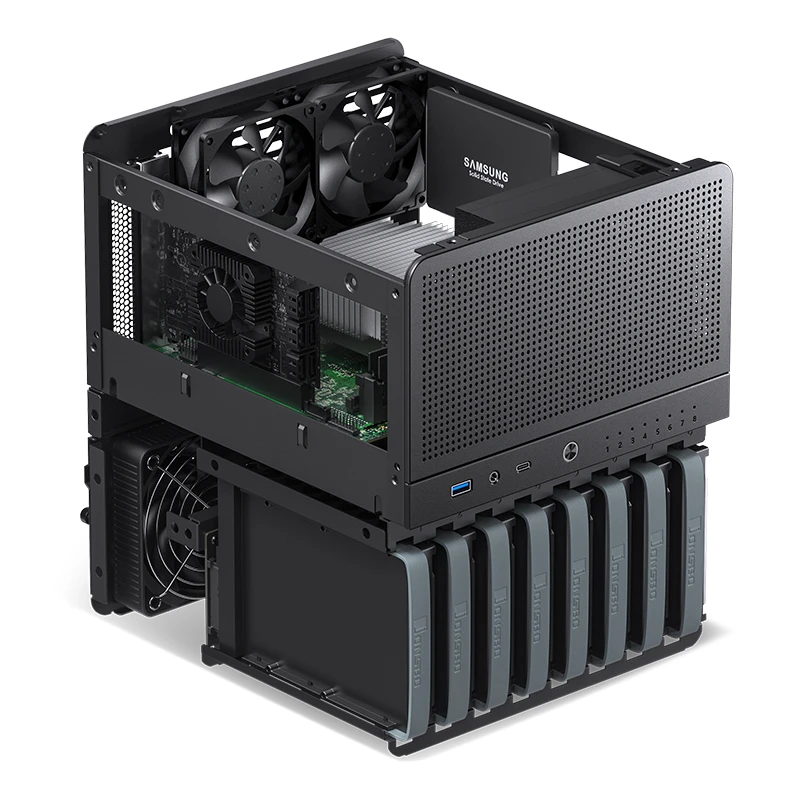

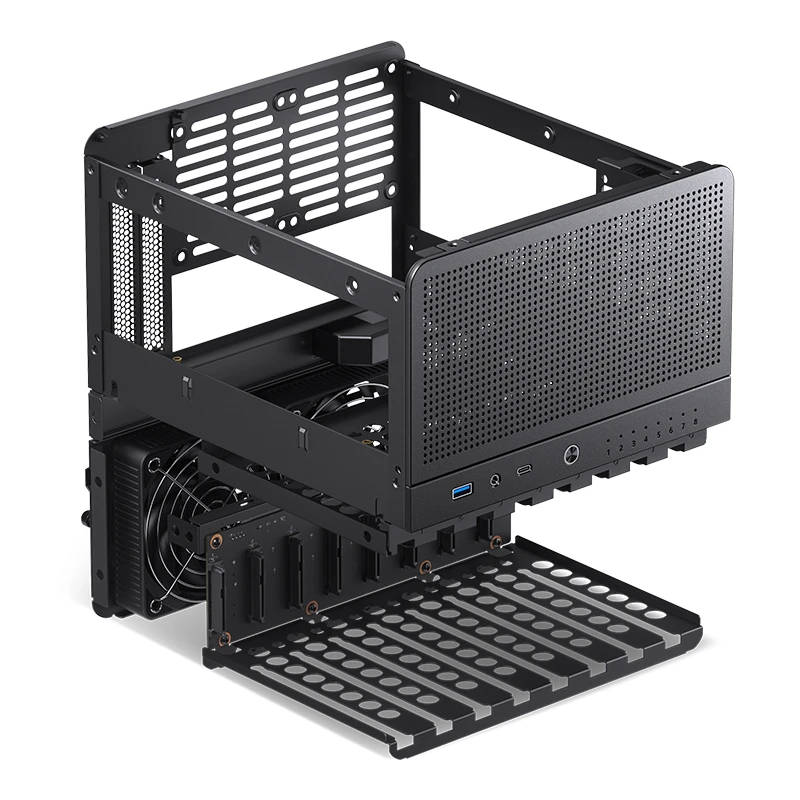

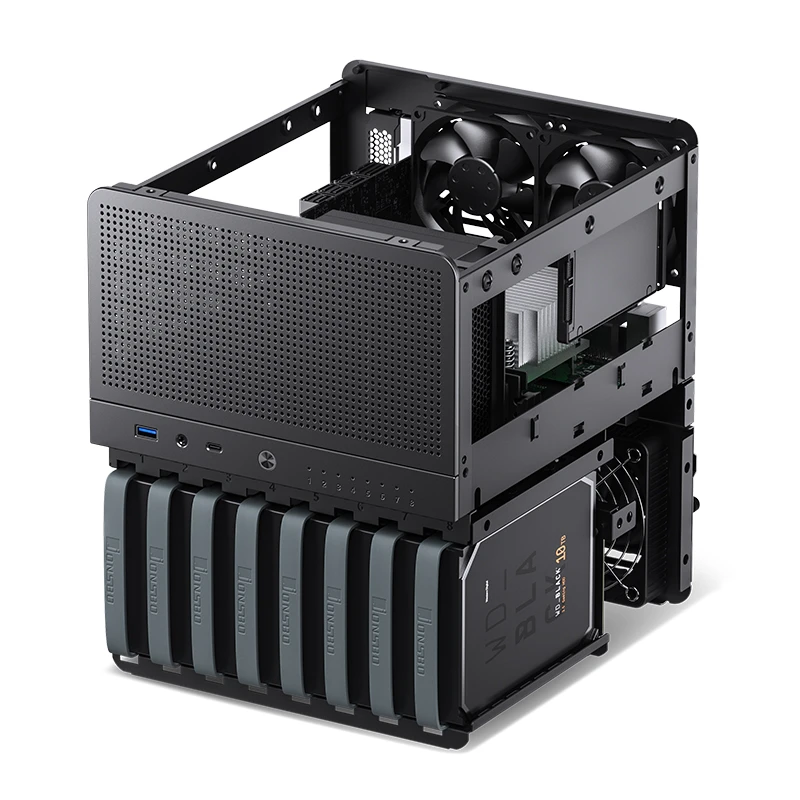

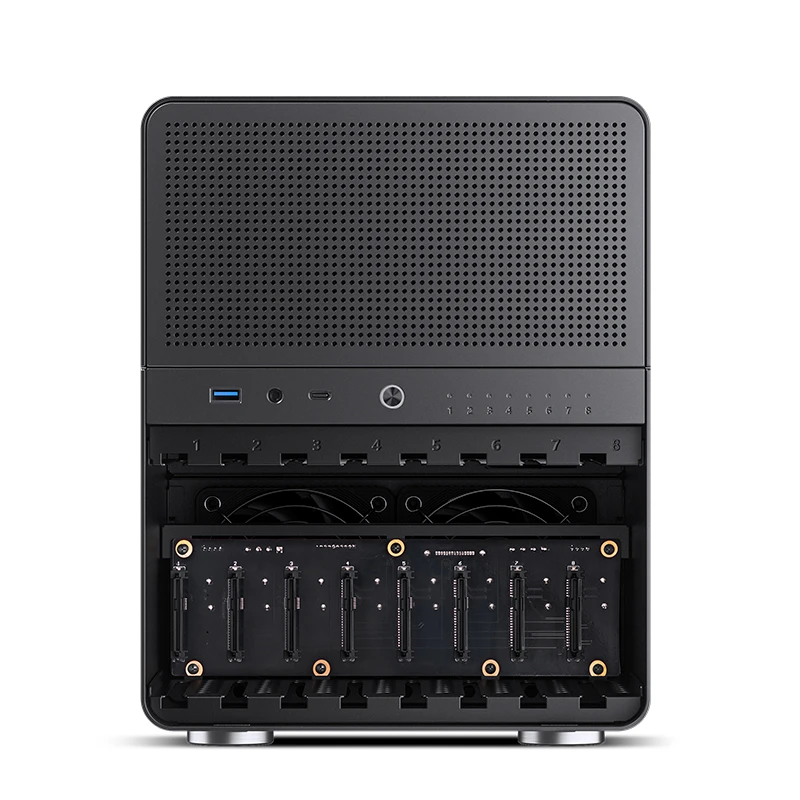

- [Update structure ]: Removable unify top cover,Multi-disc pull-out structure,Split Top and Bottom compartment structure, Separate radiator channel etc.[Standard server-grade hot-swap backplane] Dual D-type +Sata power supply plug
- Motherboard : ITX / PCI expansion slot : 2 slots / Power supply: SFX105mm / GPU lenghth max. 280mm / CPU Cooler : H:130mm
- HDD compartment built-in with 2x10cm fans for direct and efficient heat dissipation
- Front Interface :1*USB3.0/1*USB3.2Gen 2 Type-C/ Audio+Mic (2 IN 1) Mini Chassis size : 233mm(W)*262mm (D)*298mm(H)/ 9.17×10.31×11.73 in
WhatsApp us
Description
| Model：N3 Black |
| Dimension：233mm(W) * 262mm(D) * 298mm(H) |
| Material：External cover: 2.0mm Aluminum alloy; Internal Structure: 1mm Steel |
| Drive Bay：2.5SSD*1 / 3.5HDD*8 |
| Motherboard：ITX |
| PCI Expansion Slot: 2 |
| Front I/O Port：1*USB3.0 / USB3.2 Gen2 Type-C/Audio+Mic ( Headset+mic combined) |
| PSU Support: SFX≤105mm |
| Max. CPU Cooler Height: ≤130mm |
| Max. Display Card Length: ≤ 250mm |
| Cooling System: Hard disk compartment 100*25mm*2(optional) Main board compartment 80*25mm*2(optional) |
| Weight: Net 3.9kg |
Brand
Brand
JONSBO
JONSBO is a well-regarded manufacturer specializing in computer cases, CPU air coolers, and fans, known for high-quality aluminum-magnesium alloy construction, minimalist design, and excellent price-performance ratios. They are widely known for SFF (Small Form Factor) cases, NAS chassis, and panoramic viewing gaming cases
JONSBO is a well-regarded manufacturer specializing in computer cases, CPU air coolers, and fans, known for high-quality aluminum-magnesium alloy construction, minimalist design, and excellent price-performance ratios. They are widely known for SFF (Small Form Factor) cases, NAS chassis, and panoramic viewing gaming cases
