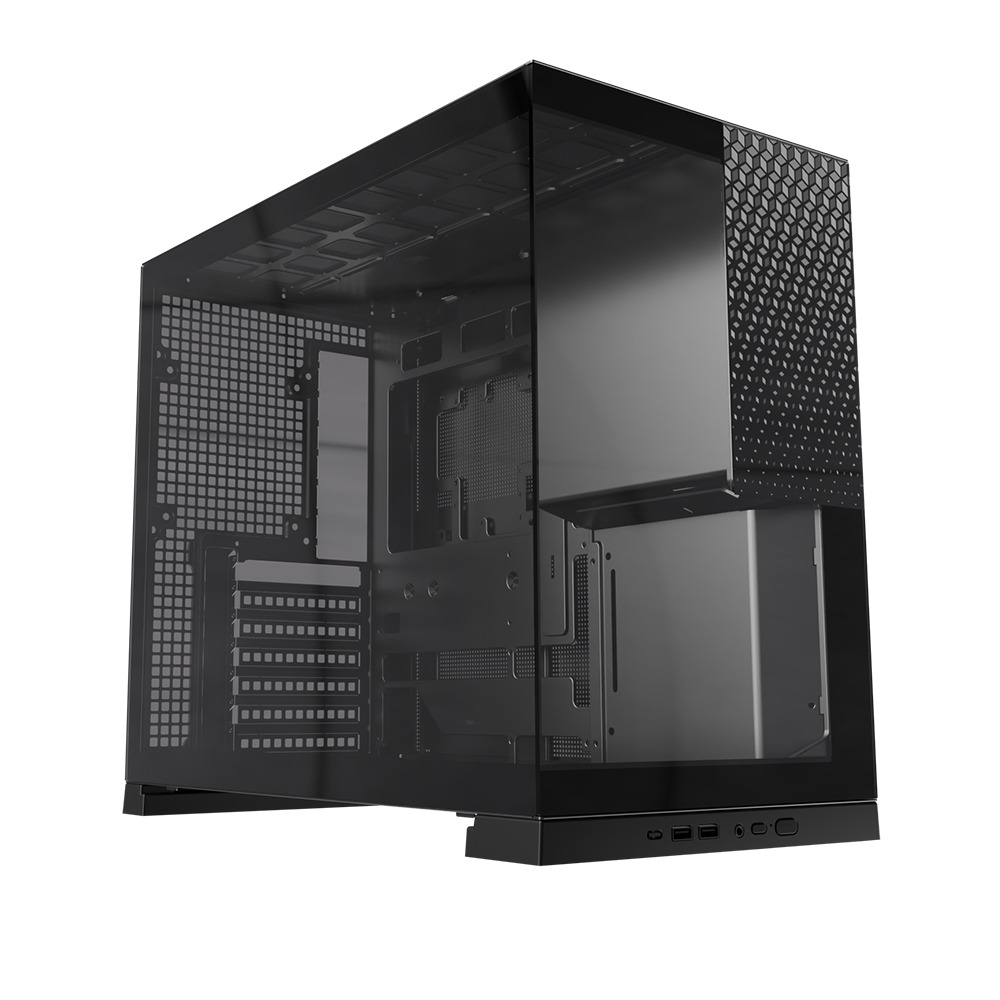

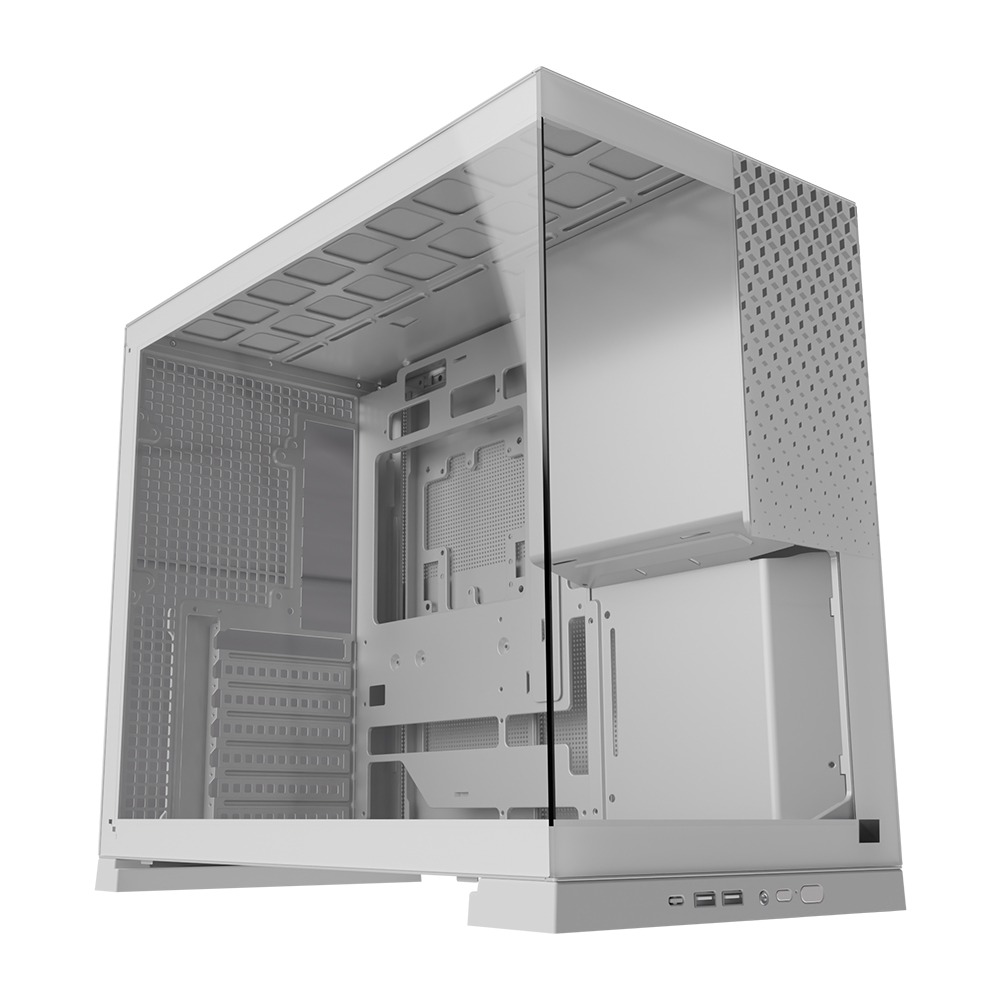

Jungle Leopard AX-01 ATX Gaming PC Computer Case

The Jungle Leopard Case AX-01 ATX gaming PC case is designed to support powerful system builds while maintaining efficient airflow and a clean internal layout. A durable structure is provided through SPCC steel construction combined with ABS materials and a tempered glass side panel, allowing internal components to be displayed clearly. Compatibility with both ATX and Micro-ATX motherboards ensures flexible configuration options for gaming systems and workstation setups alike.

Extensive cooling support is integrated to maintain stable operating temperatures during demanding workloads. Multiple fan mounting positions and liquid cooling compatibility up to 360mm are supported, allowing high-performance thermal management solutions to be installed easily. A spacious interior layout allows long graphics cards and tall CPU coolers to be accommodated, while dustproof filters are included to help maintain system cleanliness over time.

Key Features:

Tempered Glass Side Panel Design
A tempered glass panel is included to provide a clear internal view of installed components and RGB lighting setups, helping a premium visual presentation to be achieved.

Wide Motherboard Compatibility
Support for ATX and Micro-ATX motherboards is provided, allowing flexible system configurations for gaming or productivity builds.

Advanced Cooling Support
Multiple fan mounting positions are available across the top, bottom, rear, and motherboard tray areas, allowing airflow performance to be optimized. Liquid cooling radiators up to 360mm are supported for enhanced thermal control.

Large GPU Clearance
Graphics cards up to 420mm in length can be installed, ensuring compatibility with modern high-performance GPUs.

Optimized Cable Management Space
Up to 35mm of cable routing space is available behind the motherboard tray, allowing cleaner cable organization to be maintained.

Integrated Dust Protection
Dustproof filters are installed at the top and bottom of the case to help reduce dust accumulation and maintain airflow efficiency.

Specifications:

Dimension (L × W × H)
432(L) × 238(W) × 381(H) mm

Plate Thickness
Overall: 0.7MM
Rear side panel: 0.6MM
Hard disk shelf: 0.6MM

Computer Case Types
ATX

Materials
SPCC / ABS / Tempered Glass

Motherboard Compatibility
ATX, M-ATX

I/O Ports
USB 2.0 ×1
USB 3.0 ×1
HD Audio ×1

PCI-E Slot
7 × PCI-E Slots

3.5-inch Drive Bays
2

2.5-inch Drive Bays
3

Fan Support
Top: 3 × 120mm
Bottom: 3 × 120mm / 2 × 140mm
Rear: 1 × 120mm / 1 × 140mm
Motherboard back: 2 × 120mm

Liquid Cooling Support
Top: 360 ×1 / 240 ×1 mm

Cable Management Space
< 35MM

Graphics Card Clearance
< 420MM

CPU Air Cooling Clearance
≤ 176MM

Power Supply Clearance
≤ 160MM

Dust Net
Dustproof nets are equipped at the top and bottom

Net Weight
5.25kg

Gross Weight
6.5kg

Conclusion:
The Jungle Leopard Case AX-01 ATX PC case is built to support modern gaming hardware with strong airflow flexibility, generous internal clearances, and tempered glass aesthetics. Reliable structural materials, wide cooling compatibility, and organized cable routing space are combined to provide a practical enclosure suitable for performance-focused desktop systems.
